Friday, July 3, 2020

The XTO HBU Marmon Federal Wells -- July 3, 2020

Updates

July 12, 2021: fourteen XTO HBU Marmon / Marmon Federal permits were all renewed this date.

The XTO HBU Marmon Federal Permits/Wells

The permits / wells:

  • 18143, 1,065, XTO, HBU Marmon 41X-12, API: 33-105-01735, Hofflund, t9/09; cum 191K 4/20; off line 5/20;
  • 37678, conf, XTO, HBU Marmon Federal 24X-13AXD-S, Hofflund,
  • 37679, conf, XTO, HBU Marmon Federal 24X-13E-S, Hofflund,
  • 37680, conf, XTO, HBU Marmon Federal 24X-13A-S, Hofflund,
  • 37681, conf, XTO, HBU Marmon Federal 24X-13F2-S, Hofflund,
  • 37682, conf, XTO, HBU Marmon Federal 24X-13B-S, Hofflund,
  • 37683, conf, XTO, HBU Marmon Federal 24X-13AXD-W, Hofflund,
  • 37684, conf, XTO, HBU Marmon Federal 24X-13E-W, Hofflund,
  • 37685, conf, XTO, HBU Marmon Federal 24X-13A-W, Hofflund,
  • 37686, conf, XTO, HBU Marmon 24X-13F2-W, Hofflund,
  • 37687, conf, XTO, HBU Marmon 24X-13B-W, Hofflund,
  • 37688, conf, XTO, HBU Marmon 24X-13G-W, Hofflund,
  • 37689, conf, XTO, HBU Marmon 24X-13C-W, Hofflund,
  • 37690, conf, XTO, HBU Marmon Federal 24X-13H2-W, Hofflund,
  • 37691, conf, XTO, HBU Marmon Federal 24X-13D-W, Hofflund,
  • 37692, conf, XTO, Marmon Federal 24X-13HXE-W, Hofflund,
Graphics:




***********************************
Production and File Report: 18143

Production:
  • from the outset, a lousy well; max production, 14K in first 29 days, 9/09
  • typical Bakken decline
  • no evidence this well has been re-fracked as of 4/20
From the file report:
  • most recent sundry form, received May 2, 2019, name change: from Marmon 41X-12 to HBU Marmon 41X-12;
  • last note before that one, December  8, 2018: stripper well determination;
  • April 7, 2017: workover;
  • May 15, 2013: company's intent to re-frack;
  • sundry form frack data:
    • lateral 1 open hole
    • 1 million lbs 20/40 sand and 21K bbls frack fluid;
    • average treating pressure was 7,968 psi; max of 9,006 psi
    • ten stages using swell packers
    • September 3, 2009: IP: 1,065 bbls
    • target: Three Forks
  • geological well report
    • spud: June 30, 2009
    • designed as a single lateral in the Three Forks;
    • secondary zones of interest: Ratcliffe, Mission Canyon, and middle Bakken;
    • Three Forks drilled at a measured depth of 10,469', TVD = 10,589'; 34' low to the prognosis and 34' low to the Marmon 9-1 control well;
    • initially, the gas readings were generally poor, averaging 100 to 200 units, except from 11,350' to 11,500' where fair to good shows from 500 to 2000 units were recorded
    • from 11,800' to 14,175' gas shows were generally good averaging 500to 4000+ with connection kicks reaching 5000 to 6000 units
    • 2' to 5' flare
  • Ratcliffe and Mission Canyon not productive in this well
************************************
From The Daily Activity Report
July 2, 2020

Fifteen new permits, #36578 - #37692, inclusive:
  • Operator: XTO
  • Field: Hofflund (Williams County)
  • Comments:
    • I believe the daily activity report is incorrect
      • the DAR says these wells are sited in section 13-154-96; if so, they are being sited under water
      • in addition, the legal description for #37685 is incorrect; the scout ticket is correct;
    • it's much more likely these wells will be sited in section 13-154-95
    • XTO has permits for fifteen wells in section 13-154-96  (sic) -- see comments above
    • Hofflund Bakken Unit (HBU)
      • fourteen of them are Hofflund Bakken unit wells; one had the same "family" name, but not preceded by the HBU designation; it was in the Alkali Creek oil field;
      • one long single row of pads, running almost due north/south, but slightly SW to NE, very slightly off the N/S line
      • running from the SESW quadrant to the NESW quadrant
      • they are already on confidential list but based on several parameters, it's my hunch they will all run south into section 24
      • thirteen will be 1280-acre spacing
      • two will be 2560-acre unit line wells
      • it looks like: a mix of middle Bakken well and Three Forks wells

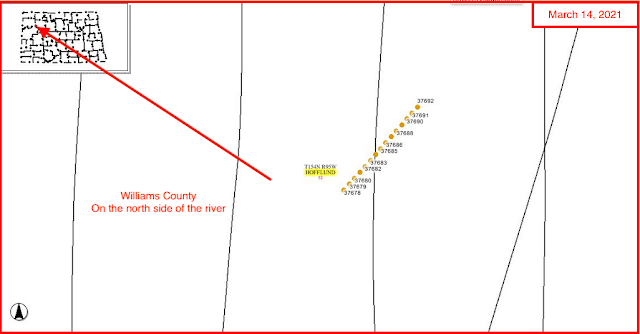

  • graphics:
